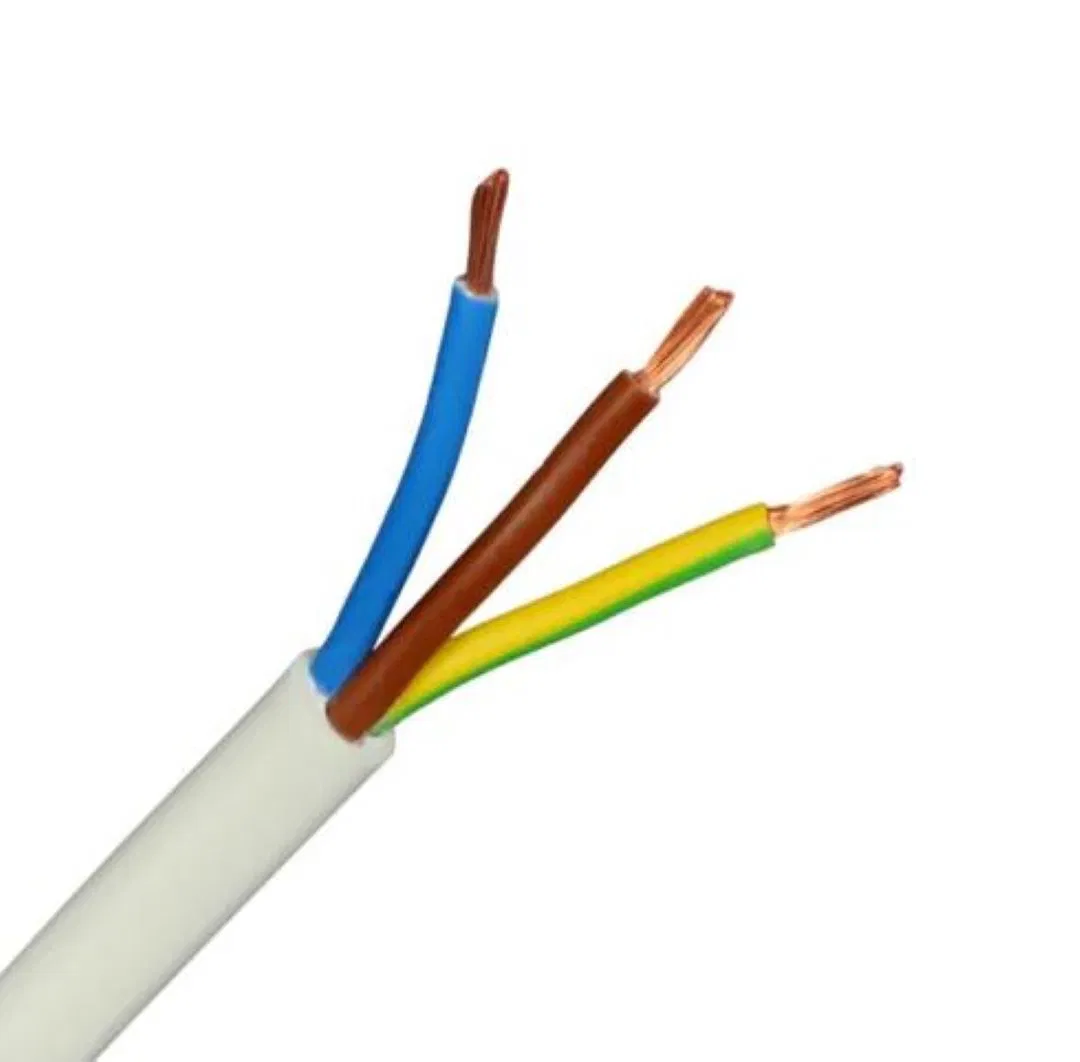

Understanding the electrical wire color code in Singapore is essential for ensuring safety and efficiency in any electrical installation. This guide provides a clear breakdown of the standard color codes used to identify different types of wires, making it easier for both professionals and DIY enthusiasts to work with electrical systems safely. If you're planning to do your own wiring, be sure to avoid common mistakes that can lead to dangerous situations. In modern Singapore electrical systems, the blue wire is used as the neutral conductor, the green/yellow wire serves as the earth (ground) wire, and the brown wire represents the live wire. Other colors like red may also be used in specific applications, such as connecting to circuit breakers or power sources. Following these color standards not only helps in safe installation but also simplifies troubleshooting and repairs, such as fixing a faulty light switch. Adhering to these color codes ensures that everyone involved in electrical work—whether homeowners or electricians—can easily identify the function of each wire, reducing the risk of accidents and improving overall system reliability. Older electrical installations in Singapore often followed a different set of color codes. In these systems, the live wire was typically red, the neutral wire was black or blue, and the earth wire was green/yellow. For three-phase cables, the live wires (L1, L2, L3) were colored red, yellow, and blue respectively, while the neutral wire was usually black or blue. The earth wire remained green/yellow, making it easy to distinguish during maintenance or upgrades. In Singapore, DC cables follow a slightly different color coding system compared to AC wiring. Typically, the live wire is brown, the neutral wire is blue, and the earth wire is green/yellow. This is the standard for single-phase DC systems. For three-phase DC systems, the color codes are more distinct to ensure proper identification during installation or maintenance. For three-phase systems, the L1, L2, and L3 wires are usually brown, black, and grey, respectively. The neutral wire remains blue, and the earth wire continues to be green/yellow. These color codes are vital for the safe operation of electrical appliances, especially when dealing with high-voltage systems like those found in industrial settings. Singapore follows a well-defined set of electrical wiring color codes to ensure clarity, safety, and compliance across all electrical installations. These standards specify the color for live, neutral, and earth wires, making it easier to identify each wire’s function during installation or repair. According to current standards, the live wire is brown, the neutral wire is blue, and the earth wire is green/yellow. This system aligns with international standards, helping to maintain consistency across different electrical devices and systems. It also reduces the risk of errors during installation and makes troubleshooting more straightforward. Compared to other countries like the USA, where the neutral wire is white or gray, and the earth wire is bare or green, Singapore’s color coding is more standardized and less prone to confusion. This makes it easier for both local and international technicians to work on electrical systems in the country. In Singapore, the color code for wires is clearly defined for both single-phase and three-phase systems. For single-phase wiring, the live wire is brown, and the neutral wire is light blue. The earth wire is always green/yellow, making it easy to spot during inspections or repairs. For three-phase systems, the live wires (L1, L2, L3) are colored brown, black, and grey, respectively. The neutral wire remains light blue, and the earth wire continues to be green/yellow. These color codes are crucial for maintaining correct phase rotation and preventing electrical hazards during installation or maintenance. Identifying whether a wire is live (L) or neutral (N) is critical for safe electrical work. In Singapore, the neutral wire is typically light blue, while the live wire can be brown, black, or grey, depending on the system and its age. It's important to note that color codes may vary slightly between older and newer installations. Always double-check using a multimeter or consult an electrician before working on any electrical system. Proper identification of wires prevents shocks, short circuits, and other dangerous situations. The National Electrical Code (NEC) outlines specific color codes for electrical wiring to ensure consistency and safety in installations across the United States. According to the NEC, the neutral wire is typically white or grey, while the protective earth wire is either bare copper, green, or green with a yellow stripe. Live wires can come in various colors, including black, red, blue, and sometimes orange or yellow, especially when marked with stripes. In three-phase systems, the wires are often black, red, and blue for 208 VAC, and brown, orange, and yellow for 480 VAC. For conductors larger than #6 AWG, which are usually manufactured in black, color tape must be applied at the ends to indicate their function. This helps prevent confusion and ensures safe handling during installation and maintenance. While the NEC is specific to the U.S., it reflects global efforts to standardize electrical practices, making it easier for technicians and engineers to work across borders and systems. Seal Element,Rubber Seal,Oem Seal Element,Rubber Sealing Element Sichuan Xinwei Rubber Co., Ltd , https://www.boprubber.com

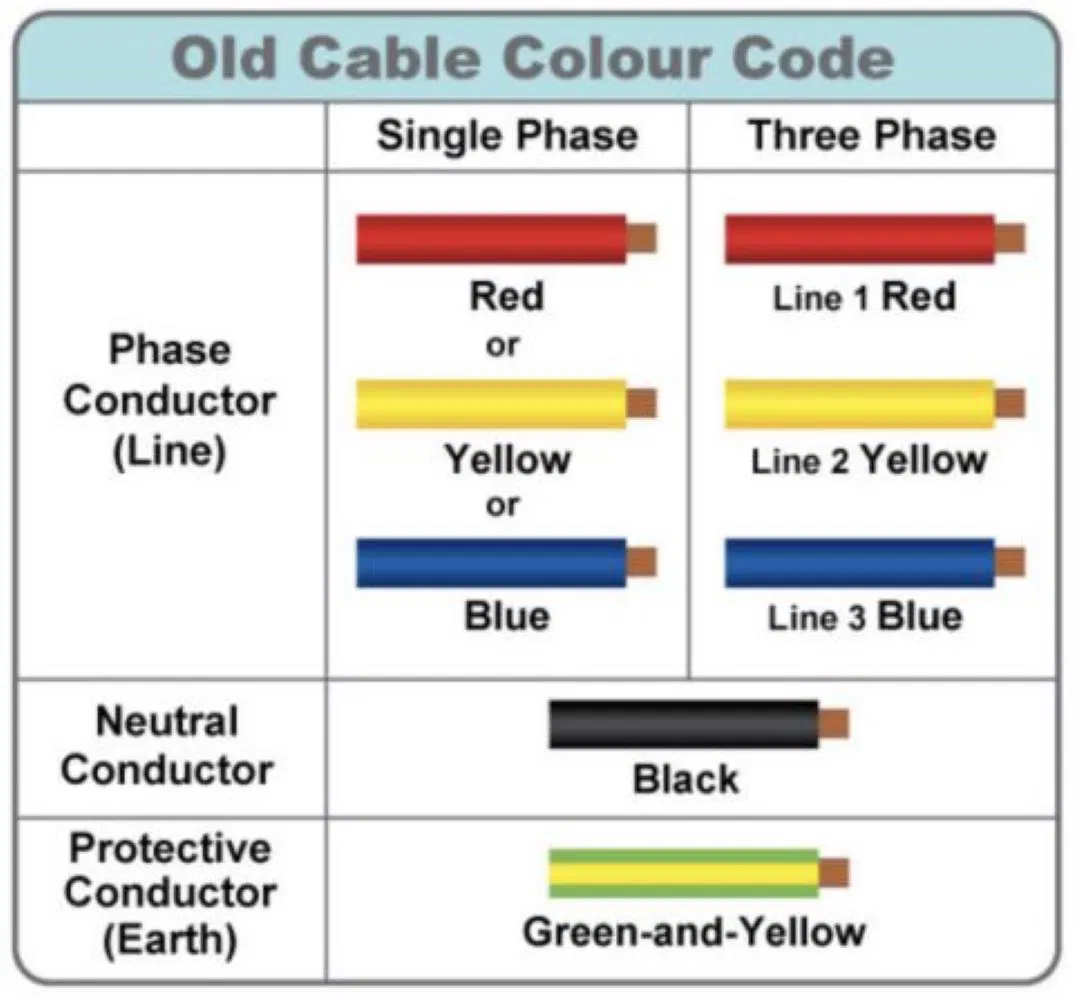

What is the color code for old electrical wires in Singapore?
What is the color code for DC cables in Singapore?

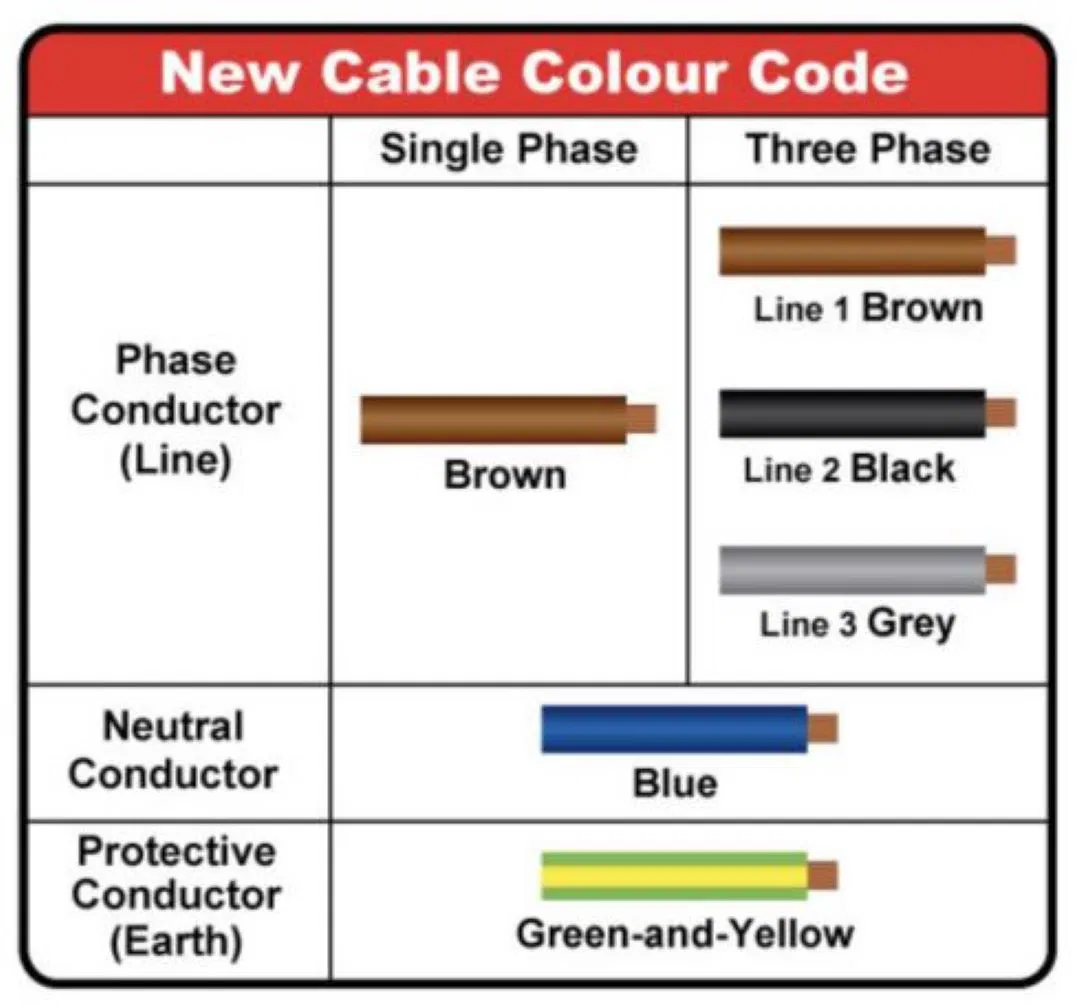

What are the electrical wiring color code standards in Singapore?

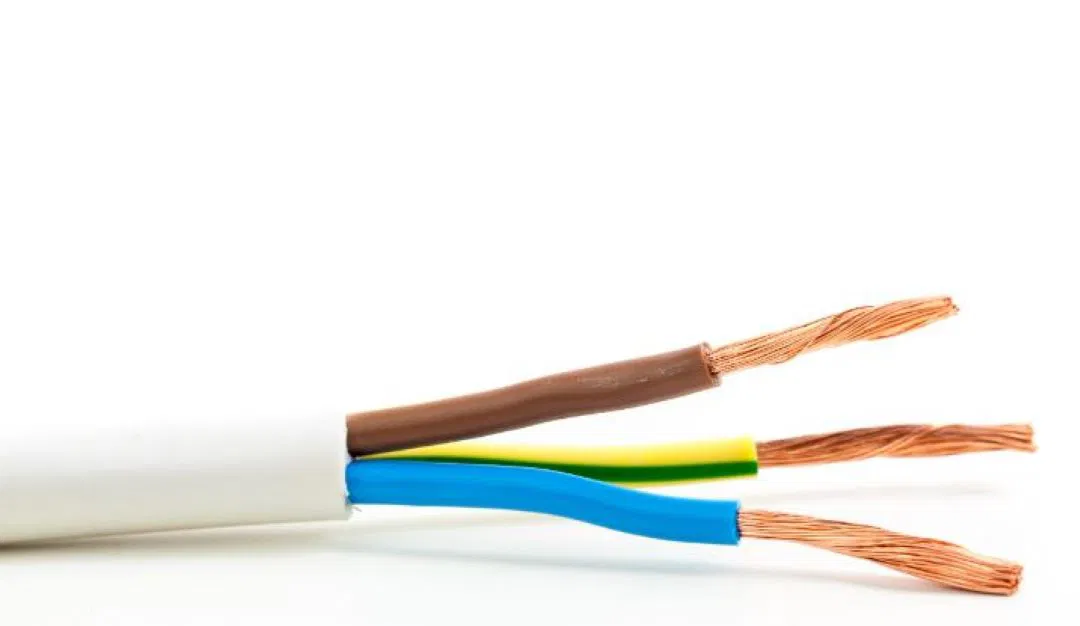

What is the color code for wires in Singapore?
How do I know if my wire is L or N?

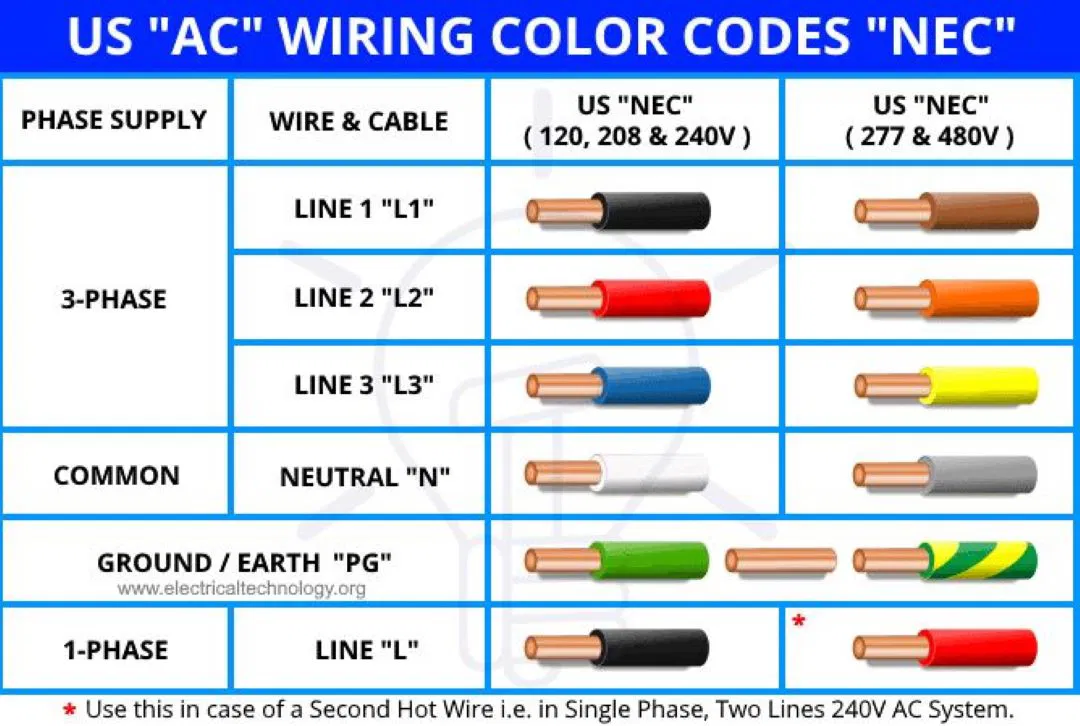

What is the National Electrical Code color coding wire?
