Wind Turbine Inspection: A Guide
Carrying out inspections on wind turbines is absolutely essential for ensuring the overall performance and longevity of wind-powered energy generation. Performing these inspections is both labor-intensive and risky due to the towering heights and intricate designs of turbines.
These inspections are crucial for detecting major issues such as core defects, delamination, internal damage, and other problems that lead to reduced energy output.
Wind turbine inspections involve checking the key components that enable the turbine to generate electricity. Regular inspections are necessary to keep an eye on wear and tear, helping to prevent breakdowns and extend the life of the turbine. As the global push for renewable energy grows, the demand for skilled wind turbine technicians is projected to rise by 60% over the next ten years.
Although wind turbines are meant to combat climate change, their blades are starting to pile up in landfills. Made of fiberglass and non-recyclable resins, the average turbine blade lasts around 25 years. While this seems like a long time, the rapid expansion of wind farms is exacerbating the issue. To address this challenge, it's crucial to extend the lifespan of these blades through routine inspections and preventative maintenance.
## What Exactly is a Wind Turbine Inspection and Why Does it Matter?
A wind turbine inspection involves examining the critical components that enable a turbine to function and produce energy. Routine inspections are vital for tracking wear and tear on parts. As the world moves toward a renewable energy future, jobs in wind turbine technology are expected to grow significantly.
Even though wind turbines are designed to help fight climate change, their blades are increasingly ending up in landfills. Turbine blades are composed of fiberglass and non-recyclable resins, with an average lifespan of about 25 years. While this might sound long, as more wind farms are constructed, this problem is becoming more severe. Thus, it’s important to enhance the durability of the blades through regular inspections and maintenance.
## Types of Wind Turbine Inspections
Wind turbine inspections aren’t just about monitoring operational status. They also play a role across various lifecycle stages:
- During and after manufacturing
- Transporting turbine components to the site
- Building the turbines in the field
- Assessing warranty claims
- Tracking construction progress of wind farms
- Monitoring operational performance
- Conducting preventative maintenance and damage assessments
Regular inspections across these phases ensure that all stakeholders involved in the project are kept informed about quality and performance. Since wind farms are costly to construct and maintain, efficiency is key. Reducing the levelized cost of energy (LCOE) remains a top priority for the industry.
### Key Components of a Wind Turbine
- Turbine blades
- Main bearings
- Generators
- Gearboxes
- Nacelle (protective housing)
### Blade Inspections
The blades of a wind turbine are responsible for spinning to convert wind energy into mechanical energy, which powers homes and businesses. Constant exposure to the elements and operational wear make the blades vulnerable to damage.
As demand for renewable energy rises, existing technologies are being updated for better performance. For instance, wind turbine blades are now larger, stretching over 260 feet. To give you a sense of scale, that’s longer than the wingspan of a Boeing 747. With increased blade size comes greater stress on all turbine components.
With the expansion of wind farms, blade inspections are becoming an essential part of maintenance strategies. Without the blades, there would be no energy generated.
## Methods for Wind Turbine Blade Inspections
A wind turbine blade typically consists of fiberglass and composite resins, which are susceptible to various issues under certain conditions. Even a minor defect on the blade's surface can reduce aerodynamic efficiency, leading to diminished energy output.
### Surface Inspection
Surface inspections rely on visual techniques like cameras, drones, or direct observation to spot issues. Common defects detected include:
- Surface cracks
- Leading-edge erosion
- Lightning strikes
- Bird strikes
- Delamination
- Leading or trailing edge splits
Regular inspections allow for timely corrective maintenance. Identifying defects early enables repairs that prolong the lifespan of components without affecting energy production.
### Sub-Surface Inspection
The internal structure of turbine blades is prone to failure during both manufacturing and field use. Sub-surface inspections employ the following methods to detect structural flaws:
- Thermal imaging
- Shearography
- Ultrasound (acoustic)
- Electromagnetic
- Radiography
- Visual inspection within the structure
These non-destructive methods allow technicians to peer through thick composite coatings without dismantling them. By analyzing changes in electromagnetic or ultrasound wavelengths, inspectors can pinpoint damaged shear webs (structural supports), cracks, manufacturing defects, and bonding erosion.
### Internal Inspection of Wind Turbines

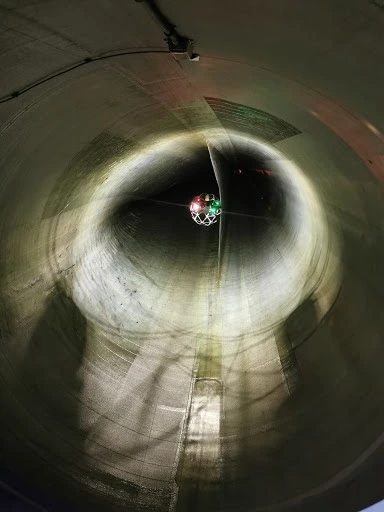

The final type of inspection involves physically entering the turbine and climbing into each of the three blades. Technicians are only permitted to venture up to 91 feet (28 meters) inside the blade. Many blades exceed 200 feet in length, so over half of the internal structure goes unchecked. Navigating the blades is specialized, dangerous, expensive, and inefficient work.

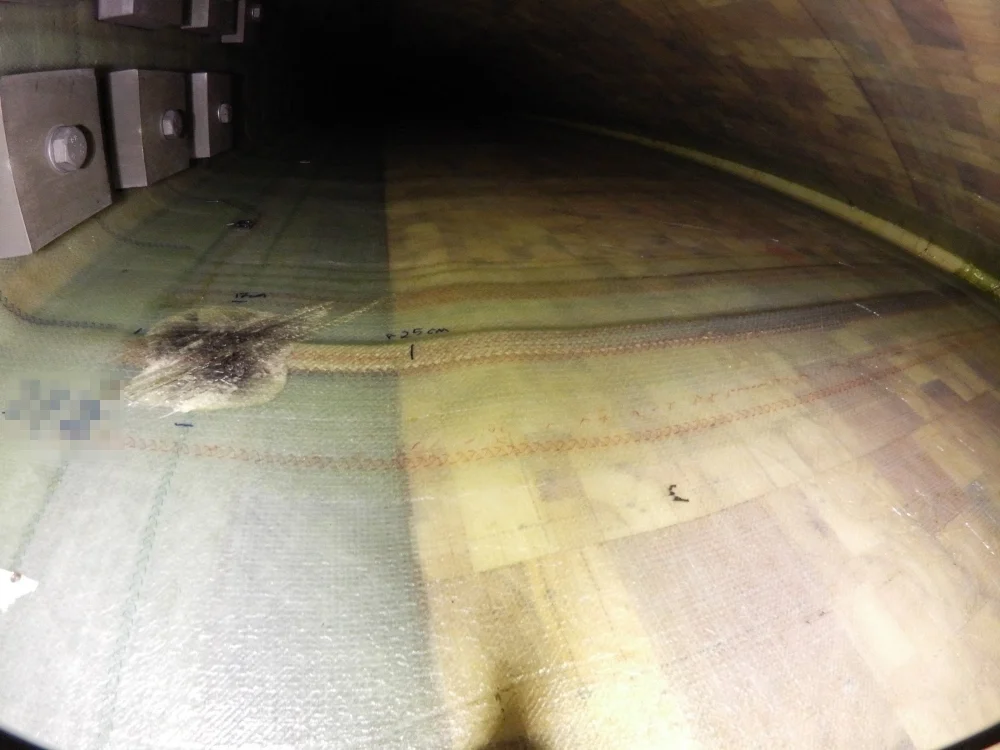

Each blade is divided into two sections, both requiring visual checks for cracks, missing or damaged hardware, and any defects that could cause failure. In offshore wind farms, internal corrosion from salty air is another concern.
For wind farms with hundreds of turbines, manually inspecting three blades with two compartments each is unsustainable. However, as the renewable energy industry adopts drone technology, inspection processes are rapidly improving.
## Traditional vs. Modern Wind Turbine Inspections

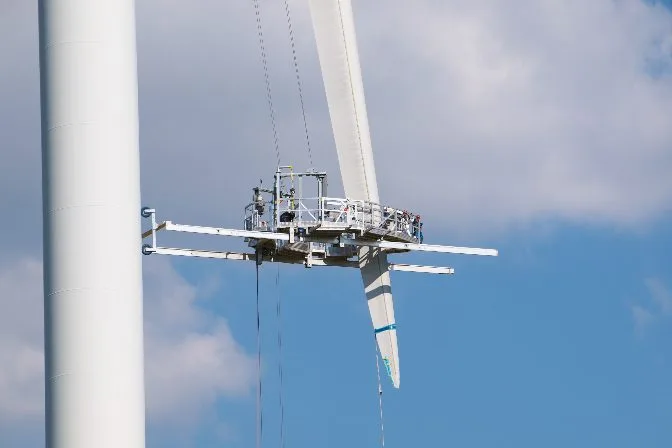

Rope access technicians traditionally handle wind turbine inspections. These highly trained individuals use ropes and tethering systems to climb turbines for visual checks, maintenance, and repairs. Turbines must be shut down during manual inspections, and the blades are stopped in the six o’clock position. After ascending the tower, teams inspect for damage and tap the blades to gauge material condition.
### Drawbacks of Rope Inspections
- Turbines are shut off for hours, causing lost revenue.
- Working at high altitudes is hazardous and time-consuming.
- Tapping blades isn’t an accurate way to assess structural integrity.
- Wind noise and weather conditions complicate inspections.
- Damaged equipment poses risks to workers.
The renewable energy sector is embracing drone technology to improve safety, efficiency, and profitability. Drones enable personnel to remain safely on the ground while the drone handles the task. Artificial intelligence and advanced sensors allow drones to provide real-time actionable data. A significant advantage of drones is that turbines don’t need to be shut down for specific inspections, preventing revenue loss.
### Benefits of Drone Inspections
- Some drone sensors are interchangeable for different types of inspections.
- High efficiency with faster data collection.
- High-resolution images reveal defects invisible to the human eye.
- Drones are suitable for both onshore and offshore wind farms.
- Operational costs are significantly lower than traditional methods.
- Workers avoid dangerous high-altitude and cramped environments.
- Real-time data is viewed on a ground control station.
- Drones can inspect the interior of blades.
As we move toward a cleaner energy future, the demand for wind turbine drone inspections will skyrocket. With more turbines being installed, there will be an increased need for smarter, more efficient solutions.
## How Often Are Wind Turbines Inspected?
Inspection and maintenance schedules vary but typically occur two to three times a year. With the advent of drone inspections, there’s potential for more frequent checks due to drones’ efficiency and cost-effectiveness.
## Cost of Wind Turbine Drone Inspections
Drone service costs depend on equipment, location, and operator experience. In some regions, the estimated price for using unmanned aerial vehicles (UAVs) ranges from $300 to $500 per turbine, approximately 20-25% of manual inspection costs.
## Best Drones for Wind Turbine Inspections
Drones reduce inspection time and costs while boosting safety. Here are the top indoor and outdoor drones for wind turbine inspections.
### Internal Drone Solutions
Using drones for wind farm inspections is still relatively new, but most drones focus on external inspections. Flyability’s Elios drones changed that.
### Flyability Elios 3

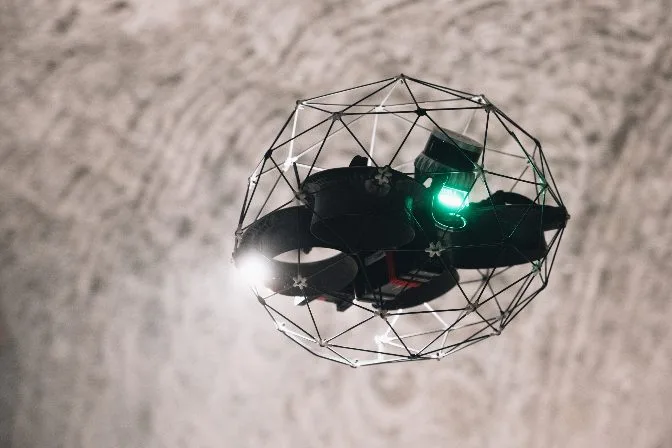

The Elios 3 is an indoor confined-space tool designed to digitize hard-to-reach areas and quickly transform data into actionable insights. Its spherical casing and FlyAware software enable autonomous inspections of wind turbine blades. An unobstructed dual thermal 4K camera paired with a 16K lumen dust-proof lighting system identifies cracks, corrosion, and structural issues. The Elios 3 is future-proof with a modular payload bay featuring a dedicated LIDAR port and space for auxiliary payloads.
Using Inspector 4.0 inspection software, workers can prioritize maintenance efforts effectively.
**Flyability Elios 3 Specs / Features:**
- Dual Thermal/4K Camera Sensor: 12 megapixels HD live streaming
- Lighting: 16K lumen dust-proof lighting with oblique lighting
- LiDAR Mapping: Real-time 3D view of the drone’s trajectory and environment
- Flight Time: 12 minutes
- Flight Speed: Up to 7 m/s
- Transmission System: Beyond visual line-of-sight
### External Drone Solutions
External inspections require less specialized equipment than internal ones.
### DJI Matrice 300 RTK
The Matrice 300 RTK is a powerful inspection drone optimized for external applications. Its compatibility with a range of Zenmuse and third-party sensors provides flexibility in inspection methods. With a hot-swappable battery system and 55 minutes of flight time, battery worries are eliminated. The anti-collision beacon, AirSense, and UAV health management system ensure safe operations.
Learn more about the DJI Matrice 300 RTK.
### DJI Mavic 2 Enterprise Advanced

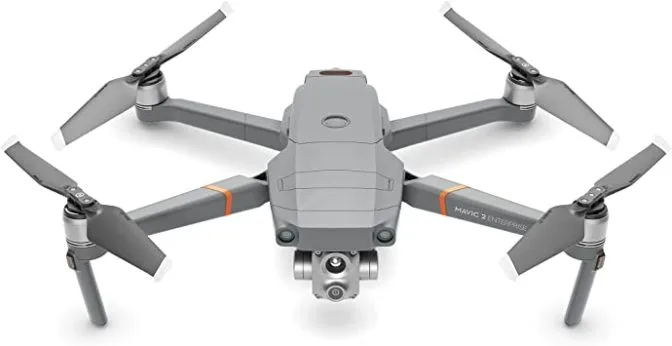

The Mavic 2 Enterprise Advanced packs industrial-grade power into the Mavic 2 platform. Its compact size makes it easy to learn and operate. A dual 4K thermal sensor detects even the smallest defects in wind turbine blades. DJI’s RTK module offers precise positioning with waypoint navigation around turbines. The speaker also serves as a communication tool during inspections.
Learn more about the DJI Mavic 2 Enterprise Advanced.
### Skydio X2

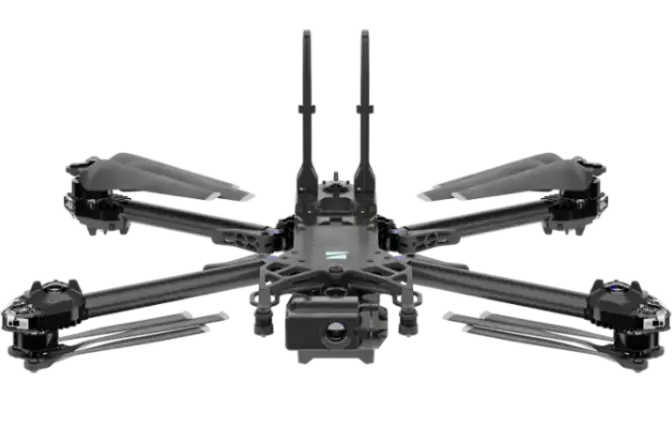

Skydio is renowned for its autonomous drone technology. The Skydio X2 combines imaging capabilities and AI for comprehensive external inspections. A standout feature is its 360 Superzoom with 100x optical zoom, ideal for spotting surface damage. Its 6-mile operational range and precise GPS make it suitable for large wind farms.
Learn more about the Skydio X2.
---
This shift toward drone-based inspections represents a revolutionary step forward in the wind energy sector.
